Standertshop Archive Triebwerk DISC | Frameset | Dark Night

Standertshop Archive Triebwerk DISC | Frameset | Dark Night

Name: Surprise gifts high quality Standertshop Archive Triebwerk DISC | Frameset | Dark Night from Thestandert.com
SKU: frames-3800632459312
Price: 93.99 USD
Availability: InStock

Original price was: $462.00.Current price is: $93.99.

Size

Clear

SKU: frames-3800632459312 Categories: Archive, Bikes Tags: Archive, Disc, Disc brake steel road bike, Frameset, Steel road bike, Steel road bikes berlin, Triebwerk, Triebwerk steel road bike

The quality you expect, the service you deserve.
Safe Transactions, Always
No-Questions-Asked Returns
Get the Best for Less

You want Real Road Cycling.

You get a steel road bike.

You get the Triebwerk Disc.

The world we live in…

Everything has to be optimized. Everything has to be faster, more efficient, smarter. We get on an e-scooter so we don’t have to walk the 300 meters to the subway.

The stress…

We mount aerodynamically optimized plastic space ships, stiffest of them all, rock hard, soulless. Wind Canal, Wattbombs, Weight Weenies. All to shave yet another second off your time on the bike. And every couple of years out with the old – no good anymore. It’s what the industry wants.

But hey – what do you want?

You want to switch off. You want to breathe. You want to enjoy.

Yes, you want speed, of course you want agility and comfort, you want to go on switchback safari with your friends and descend on the other side like there’s no tomorrow. You want all that! It’s why you ride.

Shop Triebwerk DISC steel road bike frame online or visit us in Berlin.

FACT SHEET

*Image shows size 58

$SECTION_IMAGE

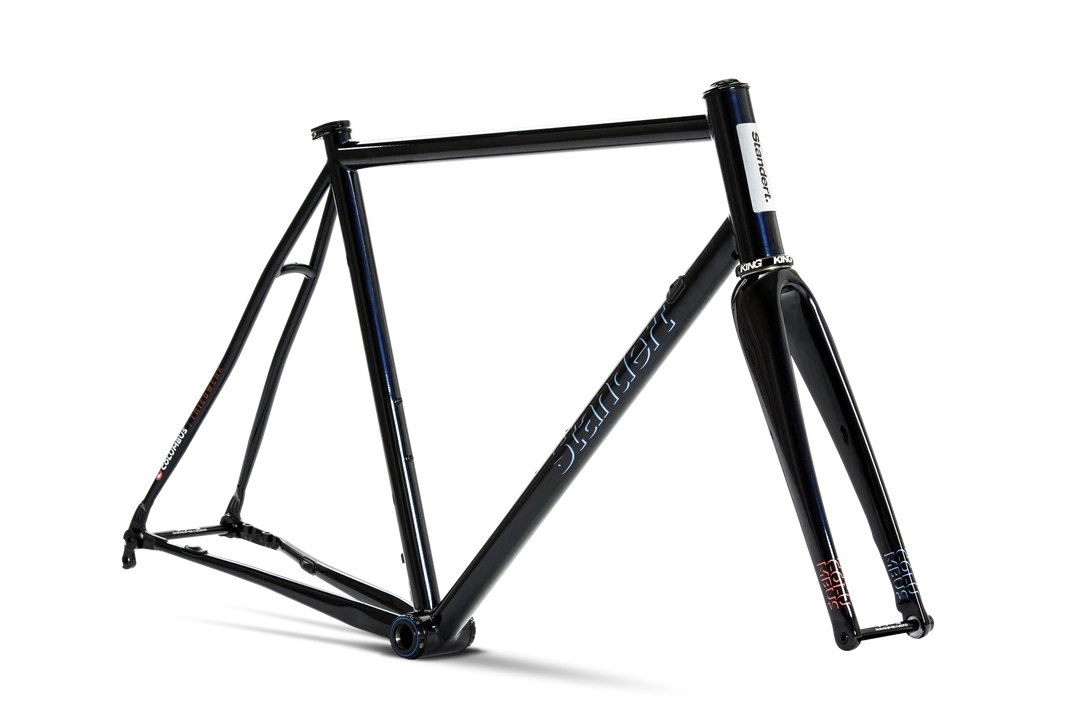

Standertshop Archive Triebwerk DISC | Frameset | Dark Night -Standert Bicycles Sales Shop Triebwerk Disc Frameset Dark Night Back diagonal

$SECTION_DISCOVER
7;72; triebwerk-disc-frameset-dark-night-dropout
50;35; triebwerk-disc-frameset-dark-night-side-profile
55;35;triebwerk-disc-frameset-dark-night-side-profile-2
45;35; triebwerk-disc-frameset-dark-night-reverse-side
55;47; triebwerk-disc-frameset-dark-night-reverse
13;50; triebwerk-disc-frameset-dark-night-back
48;83; triebwerk-disc-frameset-dark-night-details
85;55; triebwerk-disc-frameset-dark-night-front
76;32; triebwerk-disc-frameset-dark-night-chris-king
75;27; triebwerk-disc-frameset-dark-night-chris-king-2
20;35; triebwerk-disc-frameset-dark-night-lucky-cat
37;12; triebwerk-disc-frameset-dark-night-seat-stem

$SECTION_QUOTE

$SECTION_SPECS

Frameset; ;Included in the frameset:
Frame;frame;Standert Triebwerk Mach3 Disc
Fork;fork;Columbus Futura Disc 1 1/8″ – 1 1/2″ tapered
Headset;headset;Chris King Inset 7
Bottom Bracket;bottom-bracket;First T47
Seatpost Clamp;seatpost-clamp;31.8mm
Through Axles;through-axles;front 12×100, rear 12×142
; ;

Dimensions; ;Additional dimensions are:
Seatpost Diameter;seatpost;27.2mm
Front Derailleur Clamp Diameter;front-derailleur-clamp-diameter;31.8mm
Max. Tire Clearance;max.-tire-clearance;

700x30c (32c depending on rim-tire combination)

Ready for;ready-for;1x, 2x, Di2, eTap, EPS
; ;

Colors;colors;

Limited Edition, Dark Night
Sizes;sizes;

48 Project Compact™, 50 Project Compact™, 52 Project Compact™, 54, 56, 58, 60
Weight;weight-kg;Frame (size 56) 1830g, Fork (uncut) 440g

$SECTION_GEOMETRY 48 PC™;50 PC™;52 PC™;54;56;58;60
a;Seat Tube Length;480;490;515;540;555;570;575
b;Top Tube Length;498;509;526;542;559;570;582
c;Head Tube Length;111;119;127;142;156;172;188
d;Seat Tube Angle;76.5;76;75;74.5;74;74;74
e;Head Tube Angle;71.25;72;72.5;73;73.25;73.25;73.25
f;Stack;520;530;540;555;570;585;600
g;Reach;370;375;380;387;395;402;410
h;Chainstay Length;410;410;410;410;410;410;410
i;Wheelbase;974;976;979;986;996;1008;1021
;Standover Height;744;753;770;784;803;818;833

$SECTION_SIZING Body Height;cm;Inseam;cm;Frame Size
150;163;76;82;48 PC™
158;170;77;83;50 PC™
166;177;78;84;52 PC™
170;180;80;86;54
175;185;82;88;56
182;192;84;90;58
188;198;85;91;60
regular fit;race fit;regular fit;race fit

Size	48 PC™, 50 PC™, 52 PC™ (New release March 2021), 54 (New release March 2021), 56 (New release March 2021), 58 (New release March 2021), 60 (New release March 2021)
