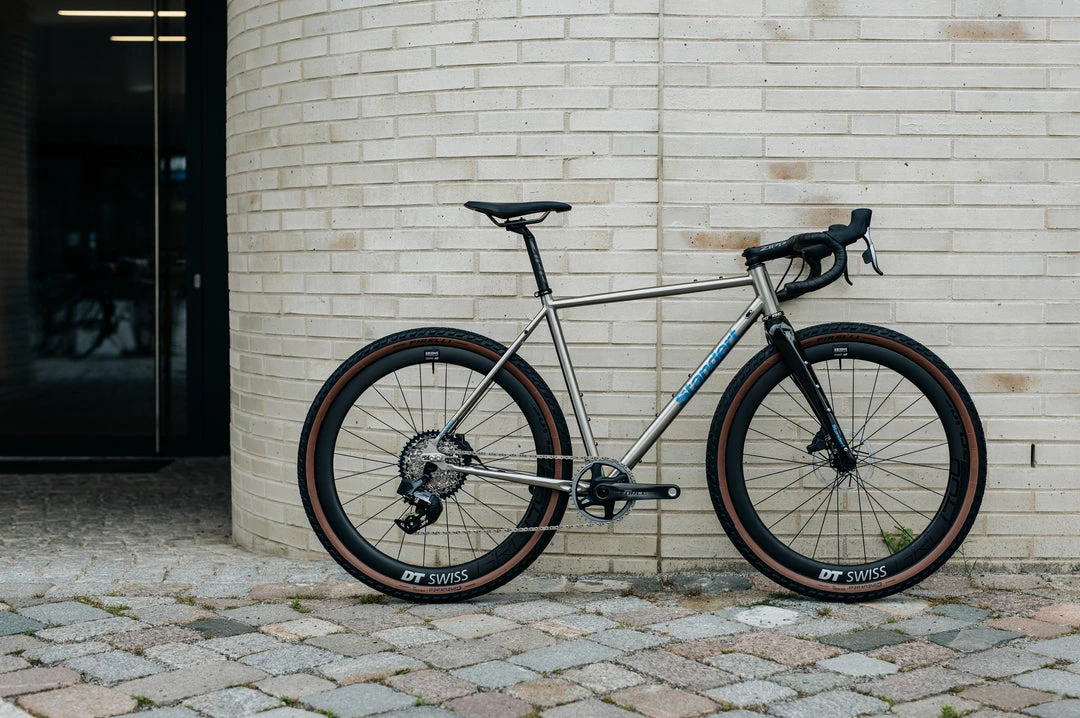

The Erdgeschoss. Updated.

Our bikepacking and gravel bike is back and it’s better than it ever was.
Explore more. Pack more. Worry less. Stainless!

With every generation of the Erdgeschoss we reach a new level of what we thought this bike could do for us. And the new updated version does it again!

We used all the goodness already built-in and added some more to perfect your gravel and bikepacking experience. More details and more features for less worries while you’re out there exploring.

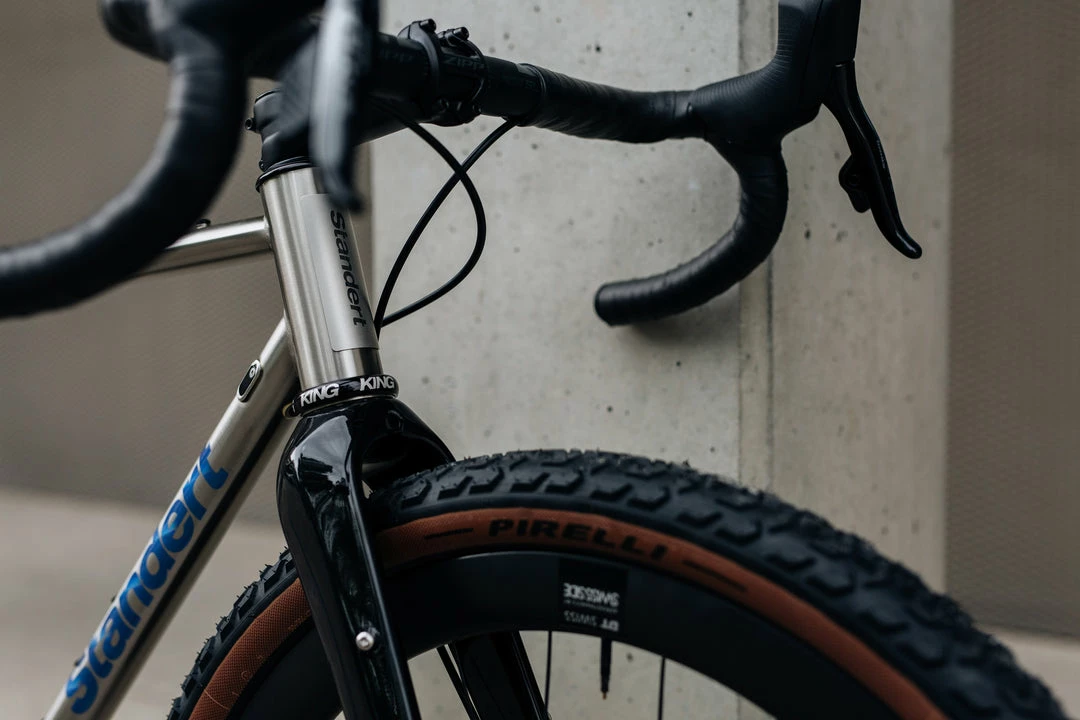

The Erdgeschoss is made from stainless steel and comes with the new Columbus Cross+ fork which is stacked with features. The internal cable housing for dynamo hub lighting makes sure that you’ll never again be left out in the dark. Meanwhile the Multi-Rake System allows for fork offset adjustments, based on the chosen wheel diameter and tire width as well a variety of load and reactivity needs.

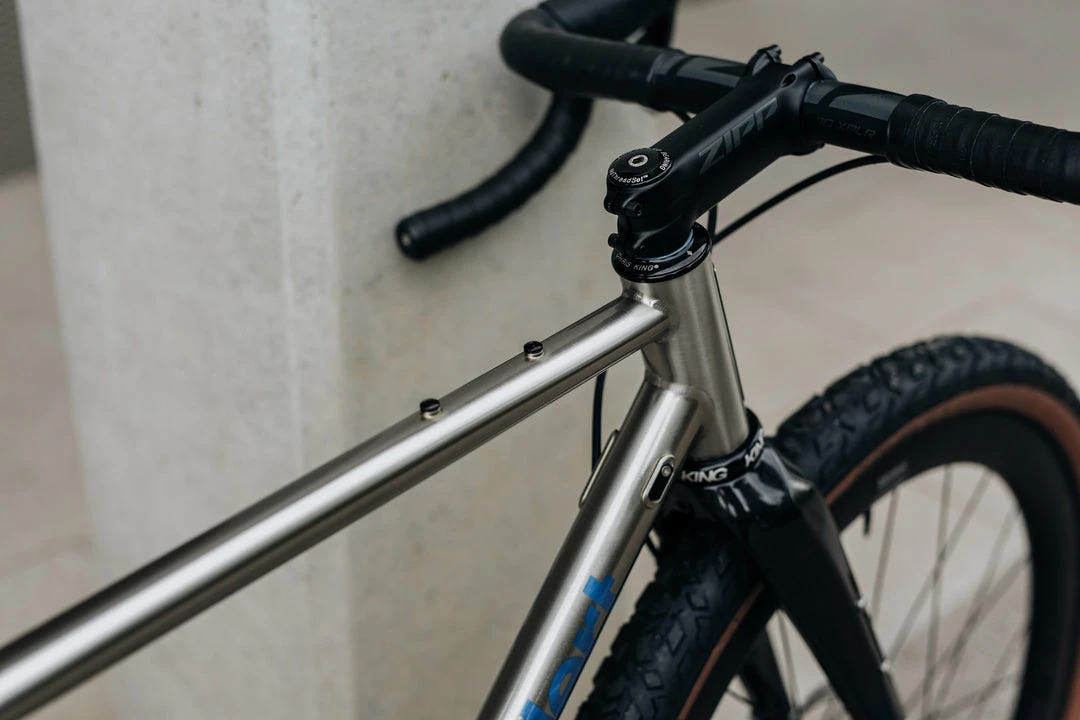

Matching the fork the updated Erdgeschoss has internal light cable routing through the frame with a dedicated light mount on the seatstay.

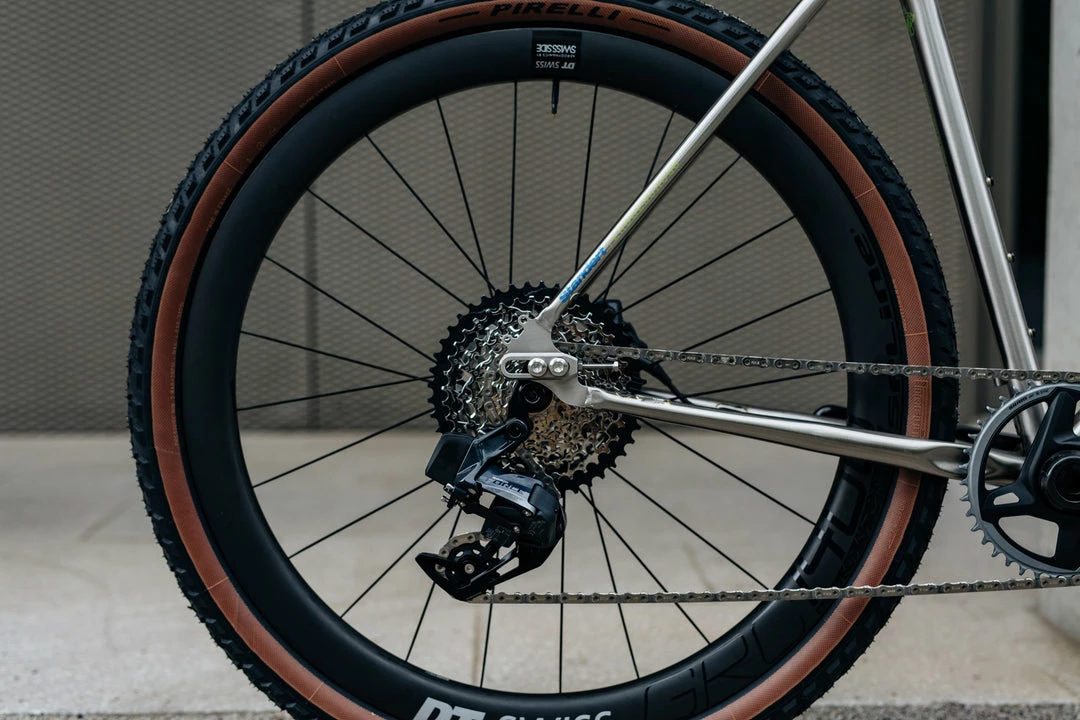

Wheelbase adjustments and tire clearance of up to 650b x 54c (700 x 50c)? No problem with our all new sliding dropouts.

Offroad, gravel, sand, wet, mud, go far, carry loads – the Erdgeschoss has got you covered.

Our updated Erdgeschoss is the most capable companion. All the features, all the style, all the excellent qualities of a steel bikepacking and gravel bike, all the trust and none of the rust.

FACT SHEET

”We’re sure that the new Erdgeschoss will sell like hotcakes!”

Bikepacking Erdgeschoss Review

”Building on the success of the previous edition, the latest Standert Bicycles Erdgeschoss is claimed to be packed with more features and better suited to the demands of bikepacking.”

$SECTION_IMAGE

$SECTION_DISCOVER
35;20;erdgeschoss-22update-frameset-rawkim-seatpost
45;68;erdgeschoss-22update-frameset-rawkim-details
36;83;erdgeschoss-22update-frameset-rawkim-bb
39;76;erdgeschoss-22update-frameset-rawkim-under-detail
15;53;erdgeschoss-22update-frameset-rawkim-back-diagonal
20;65;erdgeschoss-22update-frameset-rawkim-dropouts-1
20;60;erdgeschoss-22update-frameset-rawkim-dropouts
35;40;erdgeschoss-22update-frameset-rawkim-engineered-in-berlin
60;52;erdgeschoss-22update-frameset-rawkim-frame-crop
69;18;erdgeschoss-22update-frameset-rawkim-front-badge
69;22;erdgeschoss-22update-frameset-rawkim-badge
71;30;erdgeschoss-22update-frameset-rawkim-chris-king
80;40;erdgeschoss-22update-frameset-rawkim-front
56;27;erdgeschoss-22update-frameset-rawkim-reverse-crop
56;22;erdgeschoss-22update-frameset-rawkim-front-crop
62;35;erdgeschoss-22update-frameset-rawkim-fork-detail
63;75;erdgeschoss-22update-frameset-rawkim-fork
50;33;erdgeschoss-22update-frameset-rawkim-profileshot

$SECTION_QUOTE

$SECTION_SPECS

Frameset; ;Included in the frameset:
Frame;frame;Standert Erdgeschoss Stainless
Fork;fork;Columbus Cross+ carbon 1⅛”-1½”
Headset;headset;Chris King Inset 7
Bottom Bracket;bottom-bracket;First T47
Thru Axles;thru-axles;front 12×100, rear 12×142
Seatpost Clamp;seatpost-clamp;30.0
; ;



Dimensions; ;Additional dimensions are:
Seatpost Diameter;seatpost;27.2
Front Derailleur Clamp Diameter;front-derailleur-clamp-diameter;30.0
Max. Tire Clearance;max.-tire-clearance;650b x 54mm, 700c x 50mm
Ready for;ready-for;1x, 2x, Di2, eTap, EPS
; ;

Colors;colors;Moss Def, Rawkim
Sizes;sizes;48 Project Compact™, 50 Project Compact™, 52 Project Compact™, 54, 56, 58, 60
Weight;weight-kg;Frame (size 54) 1980g, Fork 535g

$SECTION_GEOMETRY 48PC™;50PC™;52PC™;54;56;58;60
a;Seat Tube Length;460;480;500;520;540;560;58
b;Top Tube Length;500;520;530;545;560;575;585
c;Head Tube Length;89;100;110;122;138;160;180
d;Seat Tube Angle;76.5;75.5;75;74;73.5;73;73
e;Head Tube Angle;71.25;71.25;71.5;71.5;72;72;72.5
f;Stack;519;529;539;551;568;589;610
g;Reach;373;381;384;386;391;394;398
h;Chainstay Length;425;425;425;425;425;425;425
i;Wheelbase;996;1008;1012;1018;1024;1034;1039
;Standover Height;746;760;774;789;805;826;846

$SECTION_SIZING Body Height;cm;Inside Leg;cm;Frame Size
150;163;75;82;48PC™
158;170;76;83;50PC™
166;177;77;84;52PC™
170;180;79;86;54
175;185;81;88;56
182;192;83;91;58
188;198;85;94;60
regular fit;sport fit;regular fit;sport fit
