Standertshop Pfadfinder | Frameset | LTD II

Standertshop Pfadfinder | Frameset | LTD II

Original price was: $578.00.Current price is: $95.99.

SKU: frames-7154128650428 Categories: Bikes, Gravel & Bikepacking, Pfadfinder Tags: Bikepacking frame, Frameset, Gravel bike frame, Gravel frame, Pfadfinder, Steel gravel bike frame, Steel gravel frame

The quality you expect, the service you deserve.
Safe Transactions, Always
No-Questions-Asked Returns
Get the Best for Less

We all have that one friend that is always down to party, no matter what.

The Pfadfinder is that friend. You can pull up to almost every ride and say: “Whatever, let’s do it!”

Road, Gravel, Sand, Trails… We have seen the Pfadfinder master pretty much every terrain. From high paced road rides to climbing the Alps and crossing the Moroccan desert.

The Pfadfinder comes with three bottle cage mounts so you can lower the bottle cages and use bigger frame bags. The steel frame is internally well protected against the elements.

The Pfadfinder is made for all roads, quick and sporty with a well balanced geometry between agility and comfort. The frame is made from high-end Columbus steel tubing for stiffness and compliance. With tire clearance for up to 700x38c you’re left with plenty of room for your very own interpretation of “going for a ride.”

Road and beyond.

Shop Pfadfinder LTD frameset online or visit us in Berlin.

$SECTION_IMAGE

$SECTION_DISCOVER

88;18; pfadfinder-disc-frameset-limited-edition-II-front-diagonal
62;48; pfadfinder-disc-frameset-limited-edition-II-limited-edition
83;22;pfadfinder-disc-frameset-limited-edition-II-badge
83;26;pfadfinder-disc-frameset-limited-edition-II-badge-angle
5;65; pfadfinder-disc-frameset-limited-edition-II-dropouts
23;20; pfadfinder-disc-frameset-limited-edition-II-back-diagonal
29;40; pfadfinder-disc-frameset-limited-edition-II-back-crop
83;32; pfadfinder-disc-frameset-limited-edition-II-chris-king
69;31; pfadfinder-disc-frameset-limited-edition-II-reverse-cabling
95;45; pfadfinder-disc-frameset-limited-edition-II-front
69;26; pfadfinder-disc-frameset-limited-edition-II-front-crop
68;15; pfadfinder-disc-frameset-limited-edition-II-lucky-cat
39;30;pfadfinder-disc-frameset-limited-edition-II-seatpost
45;74;pfadfinder-disc-frameset-limited-edition-II-decals
50;82;pfadfinder-disc-frameset-limited-edition-II-bb

$SECTION_QUOTE

Standertshop Pfadfinder | Frameset | LTD II -Standert Bicycles Sales Shop Webicon Pfadfinder 03

$SECTION_SPECS

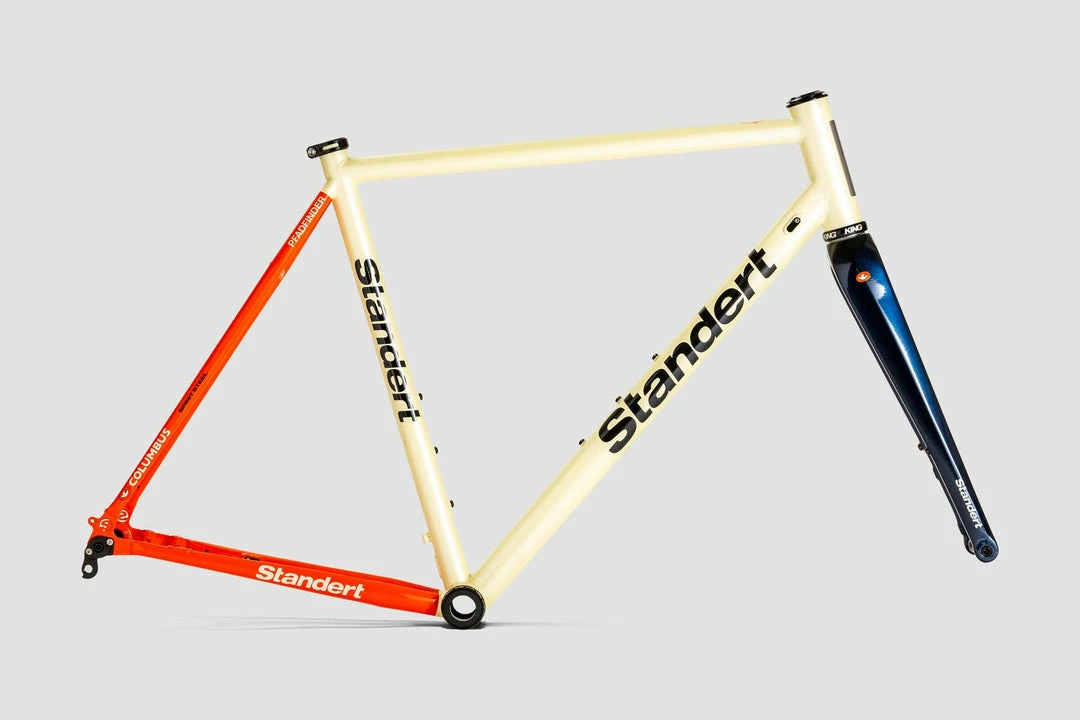

Frameset; ;Included in the frameset:
Frame;frame;Standert Pfadfinder Disc
Fork;fork;Columbus Futura Gravel 1 1/8″ – 1 1/4″ tapered
Headset;headset;Chris King Inset 8
Bottom Bracket;bottom-bracket;First T47
Seatpost Clamp;seatpost-clamp;31.8mm
Thru Axles;through-axles;front 12×100, rear 12×142

; ;

Dimensions; ;Additional dimensions are:
Seatpost Diameter;seatpost;27.2mm
Front Derailleur Clamp Diameter;front-derailleur-clamp-diameter;31.8mm
Max. Tire Clearance;max.-tire-clearance;700x38c
Ready for;ready-for;1x, 2x, Di2, eTap, EPS
; ;

Colors;colors;Candy Drip, Emerald Rush, LTD II
Sizes;sizes;

48 Project Compact™, 50 Project Compact™, 52 Project Compact™, 54, 56, 58, 60
Weight;weight-kg;Frame (size 56) 1850g, Fork 450g

$SECTION_GEOMETRY 48 PC™;50 PC™;52 PC™;54;56;58;60
a;Seat Tube Length;480;495;510;530;550;570;585
b;Top Tube Length;500;514;526;543;561;575;590
c;Head Tube Length;98;108;118;131;148;164;177
d;Seat Tube Angle;76;75;74.5;74;73.5;73.5;73.5
e;Head Tube Angle;71.25;71.5;71.5;72.25;73.25;73.25;73.25
f;Stack;520;530;540;555;575;590;605
g;Reach;368;370;375;383;390;400;411
h;Chainstay Length;415;415;415;415;415;415;415
i;Wheelbase;979;983;991;997;1000;1015;1030
;Standover Height;743;758;767;789;808;819;834

$SECTION_SIZING Body Height;cm;Inseam;cm;Frame Size
150;163;75;82;48 PC™
158;170;76;83;50 PC™
166;177;77;84;52 PC™
170;180;79;86;54
175;185;81;88;56
182;192;83;91;58
188;198;85;94;60
regular fit;race fit;regular fit;race fit
