Here it is. Our first full-performance cyclocross frameset. The Stichsäge.
CX, Cyclocross, Cross…no matter what you call it, it’s where the often very formal sport of cycling rips off its shirt to get rowdy & dirty. That’s one of the reasons why we love cyclocross. The lines between disciplines are blurring. The strict rules about which discipline can be ridden in which season are becoming a thing of the past. We’ve given into our urge to ride cross all year, whenever we feel like it.
The Stichsäge is made from scandium aluminum and is our first frameset with fully integrated cabling. This makes it not just look cleaner, but also a joy to clean after some dirty riding. Handmade and painted in Italy.
According to regulations, cyclocross bikes must have 33mm tires, but knowing that you might use the Stichsäge for more than just licensed racing, it can fit up to 40mm tires.
- • Fully internal cable routing
- • Custom T47 bb shell with machined inside for optimized weight and space for internal cable routing
- • Tire clearance to fit up to 40mm tires (actual width)
- • High end Scandium Aluminium frame with full carbon fork
- • Race proven geometry for superior pedaling efficiency and handling
- • Engineered in Berlin, Made in Italy
FACT SHEETS

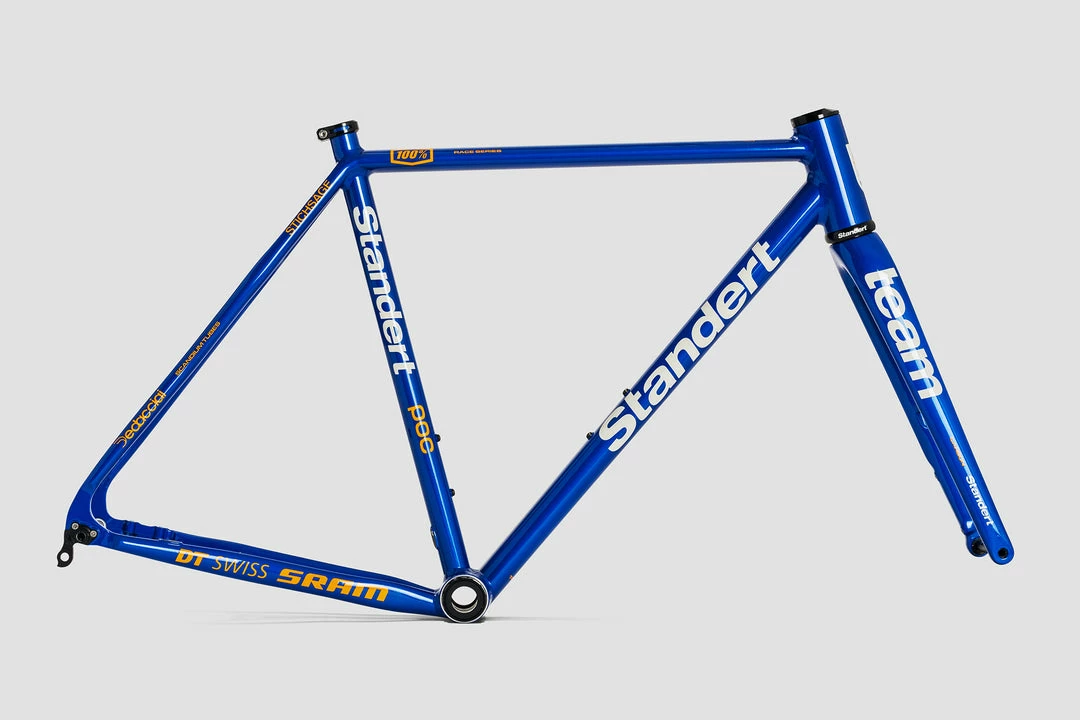

*Image shows size 54
$SECTION_IMAGE
$SECTION_DISCOVER
58;8;stichsaege-frameset-team-lucky-cat
63;36;stichsaege-frameset-team-detail
17;67;stichsaege-frameset-team-dropouts
50;39;stichsaege-frameset-team-profileshot
44;36;stichsaege-frameset-team-made-in-italy
72;20;stichsaege-frameset-team-badge
74;25;stichsaege-frameset-team-badge-angle
80;43;stichsaege-frameset-team-front
55;25;stichsaege-frameset-team-frame-crop
24;43;stichsaege-frameset-team-back-diagonal
33;20;stichsaege-frameset-team-seat-stem
39;87;stichsaege-frameset-team-bb
$SECTION_QUOTE
$SECTION_SPECS
Frameset; ;Included in the frameset:
Frame;frame;Standert Stichsäge
Fork;fork;Standert full carbon integrated tapered 1 1/8″-1 1/2″ flat mount
Headset;headset;Standert Integrated
Bottom Bracket;bottom-bracket;First T47
Seatpost Clamp;seatpost-clamp;31.8mm
Through Axles;through-axles;front 12×100, rear 12×142
; ;
Dimensions; ;Additional dimensions are:
Seatpost Diameter;seatpost;27.2mm
Front Derailleur Clamp Diameter;front-derailleur-clamp-diameter;31.8mm
Max. Tire Clearance;max.-tire-clearance;700x40mm (actual width)
Recom. max. rider weight;recom.-max.-rider-weight;95 kg
; ;
Colors;colors;Team, Leaping Lilac
Sizes;sizes;48 Project Compact™, 50 Project Compact™, 52 Project Compact™, 54, 56, 58, 60
Weight;weight-kg;Frame (size 54) 1480g, Fork 385g
$SECTION_GEOMETRY 48 PC™;50 PC™;52 PC™;54;56;58;60
a;Seat Tube Length;480;490;520;545;560;575;590
b;Top Tube Length;495;510;520;540;555;565;580
c;Head Tube Length;108;113;123;133;142;158;172
d;Seat Tube Angle;76.5;76;75.5;74;73.5;73.5;73.5
e;Head Tube Angle;70;70.5;71;71.5;72;72;72f;Stack;523;529;538;549;560;574;588
g;Reach;366;375;379;381;388;394;405
h;Chainstay Length;425;425;425;425;425;425;425
i;Wheelbase;1001;1008;1011;1012;1019;1029;1044
j;Standover Height;755;762;784;800;812;827;841
k;BB Drop;68;68;65;65;65;65;65
$SECTION_SIZING Body Height;cm;Inseam;cm;Frame Size
150;163;76;82;48 PC™
158;170;77;83;50 PC™
166;177;78;84;52 PC™
170;180;80;86;54
175;185;82;88;56
182;192;84;90;58
188;198;85;91;60
regular fit;race fit;regular fit;race fit
| Size | 48 PC™, 50 PC™, 52 PC™, 54, 56, 58, 60 |
|---|
