Standertshop Triebwerk CR | Complete Bike | Pepper



The roads we ride. The mountains we climb. The crashes. The monuments. The punctures. The coffee stops. The weather… It all adds up to the ever evolving story of our cycling lives.

The all new Triebwerk CR is here to be your timeless companion on this journey. A classic road bike that gives you the feeling of riding a piece of cycling heritage while being an uncompromised modern steel road bike. We didn’t test it in a wind tunnel because the views in there suck. Instead we had a lovely trip to France and rode it up the Mont Ventoux. The Triebwerk CR is made to create memories and take you places instead of KOMs and races.

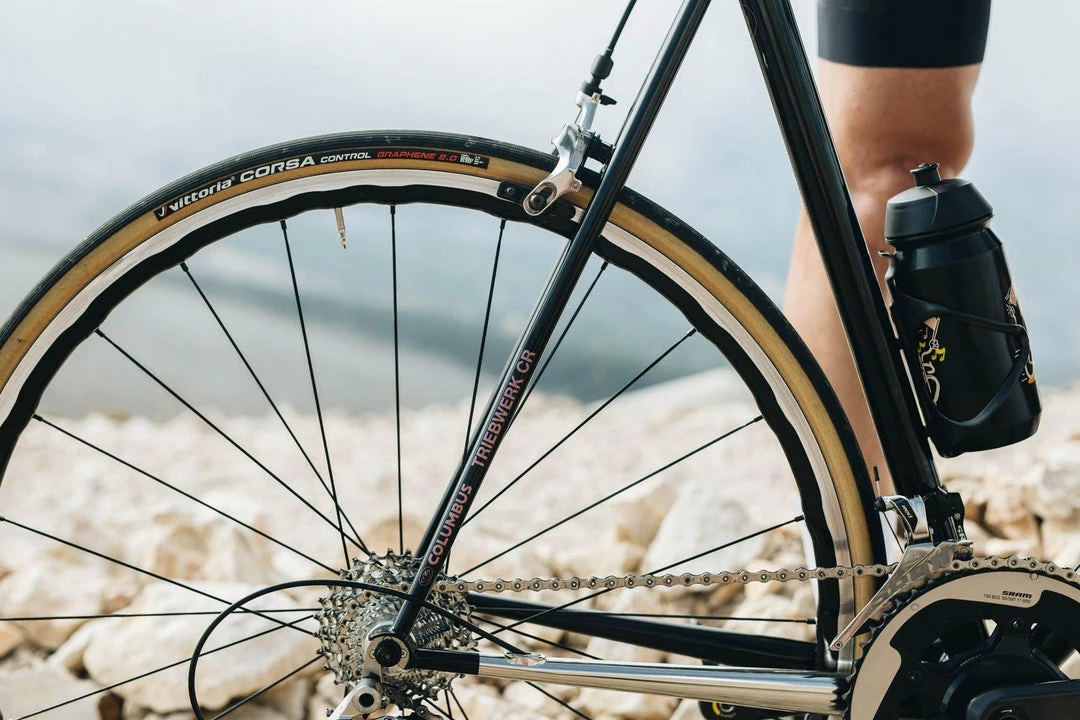

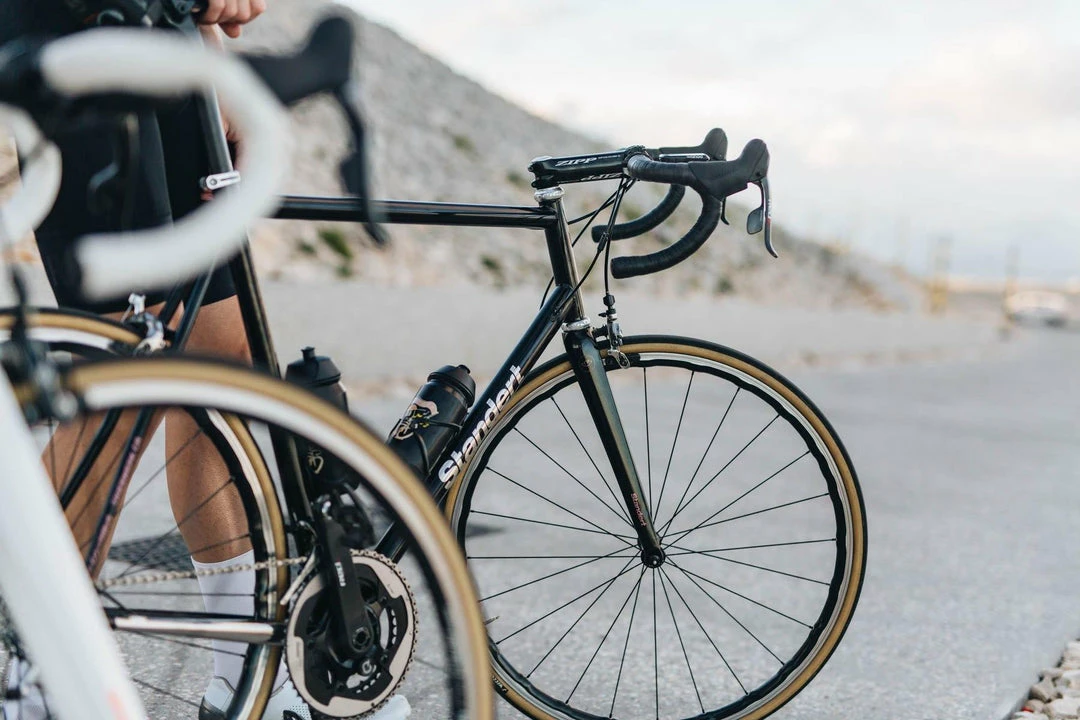

Made from a mix of Columbus Spirit, Spirit HSS and XCr tubes combined with a maximum of 28c tire clearance the Triebwerk CR gives you all the compliance you could ask for to fully enjoy your ride. Furthermore we found out that rim brakes still work. And they are also so easy to maintain. The 1 ⅛” headtube with the Chris King headset and the Columbus Futura Caliper SL carbon fork give the Triebwerk CR that slick classic road bike look. When it comes to the bottom bracket we opted for T47 as usual. In the end we created a modern steel road bike that is very light, agile and durable but still looks like an absolute classic.

$SECTION_IMAGE







$SECTION_DISCOVER
97;42;triebwerk-cr-pepper-front-diagonal
84;25;triebwerk-cr-pepper-handlebars
75;31;triebwerk-cr-pepper-handlebars-side
57;35;triebwerk-cr-pepper-frame-crop
28;33;triebwerk-cr-pepper-brake
46;80;triebwerk-cr-pepper-crankset
76;44;triebwerk-cr-pepper-tire
48;57;triebwerk-cr-pepper-details
19;57;triebwerk-cr-pepper-hub-rear
32;68;triebwerk-cr-pepper-groupset
26;16;triebwerk-cr-pepper-saddle
5;42;triebwerk-cr-pepper-back-diagonal
35;38;triebwerk-cr-pepper-lucky-cat

$SECTION_QUOTE



$SECTION_SPECS

Stem;stem;Zipp Service Course Silver/SL Beyond Black 6°
Handlebar;handlebar; Zipp Service Course 80 Silver/ SL-70 Ergo Beyond Black
Handlebar Tape / Grips;handlebar-tape-grips;Fizik Vento Microtex, 2mm
Shift / Brake Levers;shift-brake-levers;Sram Red 22
Brake Front;brake-front;Sram Red Dual Pivot
Brake Rear;brake-rear;Sram Red Dual Pivot
Derailleur Front;derailleur-front;Sram Red 22
Derailleur Rear;derailleur-rear;Sram Red 22
Cassette;cassette;Sram Force XG-1190 11-26
Chain;chain;Sram Red 22

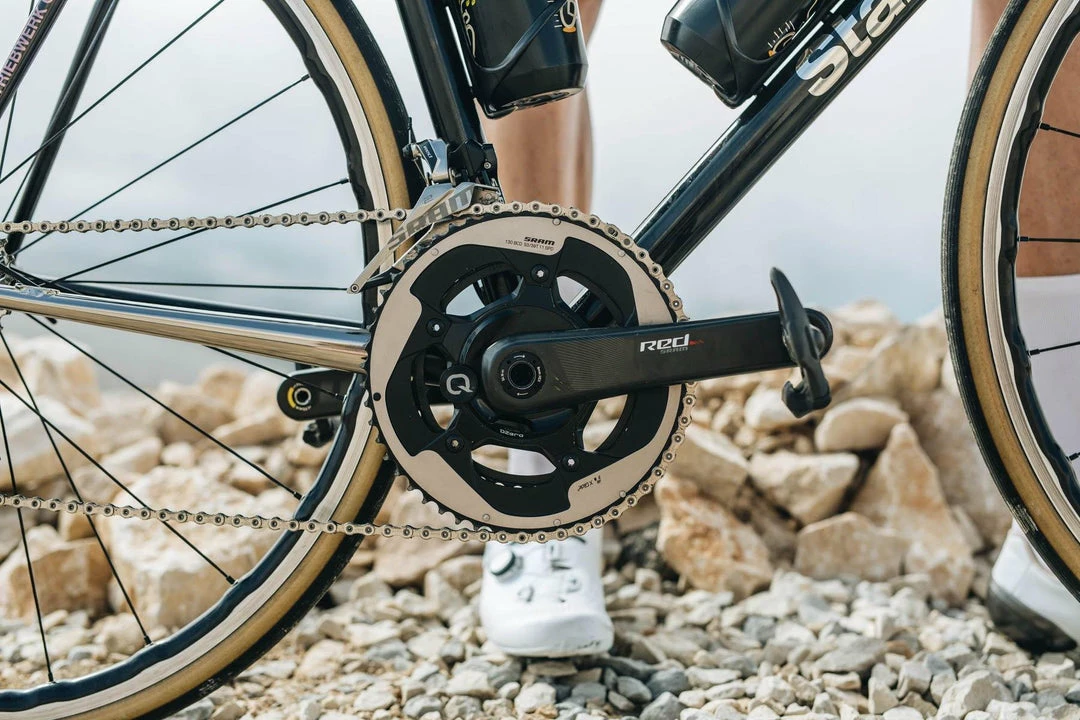

Crankset;crankset;Sram Red 22 5236
Saddle;saddle;Fizik
Seatpost;seatpost; Zipp Service Course Silver/ SL Beyond Black

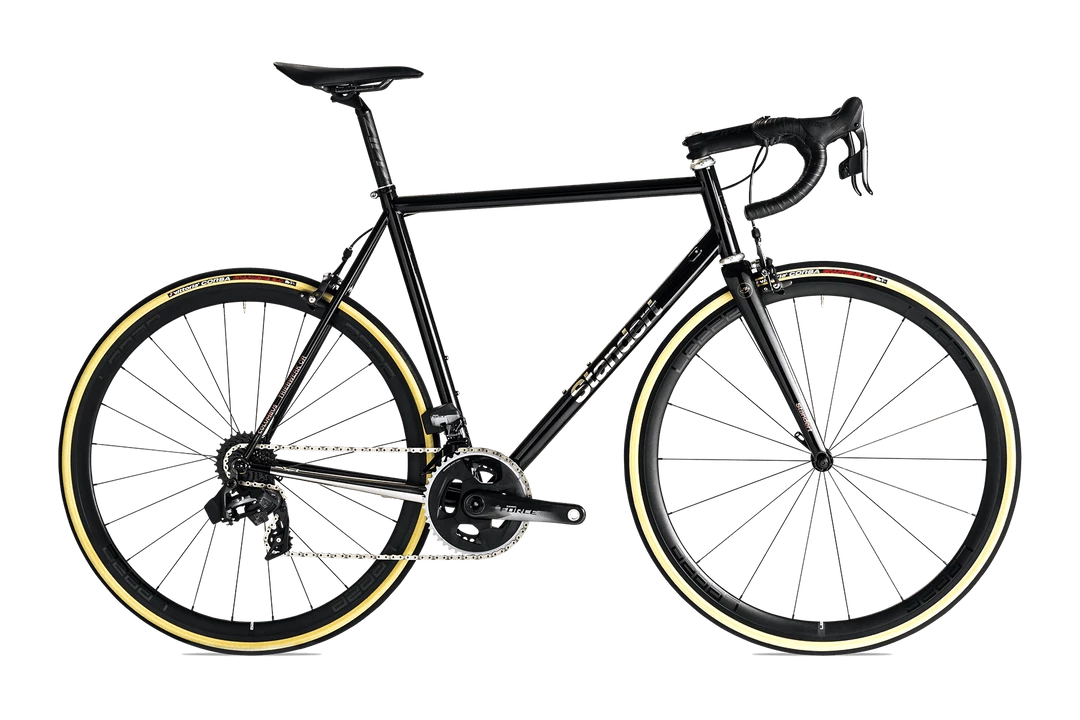

 Frame;frame;Standert Triebwerk CR
Fork;fork;Columbus Futura Caliper SL 1 1/8″Colors;colors;Salt, PepperSizes;sizes;52, 54, 56, 58, 60Weight;weight-kg; Complete (Size 56) 8,1kgMax. Tire Clearance;max.-tire-clearance;700x28c; ; Headset;headset;Chris King NoThreadSet 1 1/8″Bottom Bracket;bottom-bracket;First T47 30i; ;
Wheelset;wheelset;Leeze
Tires;tires;Vittoria Corsa 28c



$SECTION_GEOMETRY 52;54;56;58;60
a;Seat Tube Length;535;555;570;585;600
b;Top Tube Length;525;542;560;570;582
c;Head Tube Length;127;143;157;173;188
d;Seat Tube Angle;75;74.5;74;74;74
e;Head Tube Angle;72;73;73.2;73.2;73.2
f;Stack;534;553;567;582;597
g;Reach;380;388;397;404;410
h;Chainstay Length;410;412;412;412;412
i;Wheelbase;987;989;1001;1013;1023
j;Standover Height;777;801;815;829;844
k;Crankset;170;170;172.5;172.5;172.5
l;Stem;110;110;120;120;120
m;Handlebar Width;38;40;42;42;42
n;Setback;0;0;20;20;20

$SECTION_SIZING Body Height;cm;Inseam;cm;Frame Size
160;170;80;84;52
170;180;82;86;54
175;185;83;87;56
185;195;85;89;58
190;200;87;91;60
regular fit;race fit;regular fit;race fit
