The roads we ride. The mountains we climb. The crashes. The monuments. The punctures. The coffee stops. The weather… It all adds up to the ever evolving story of our cycling lives.

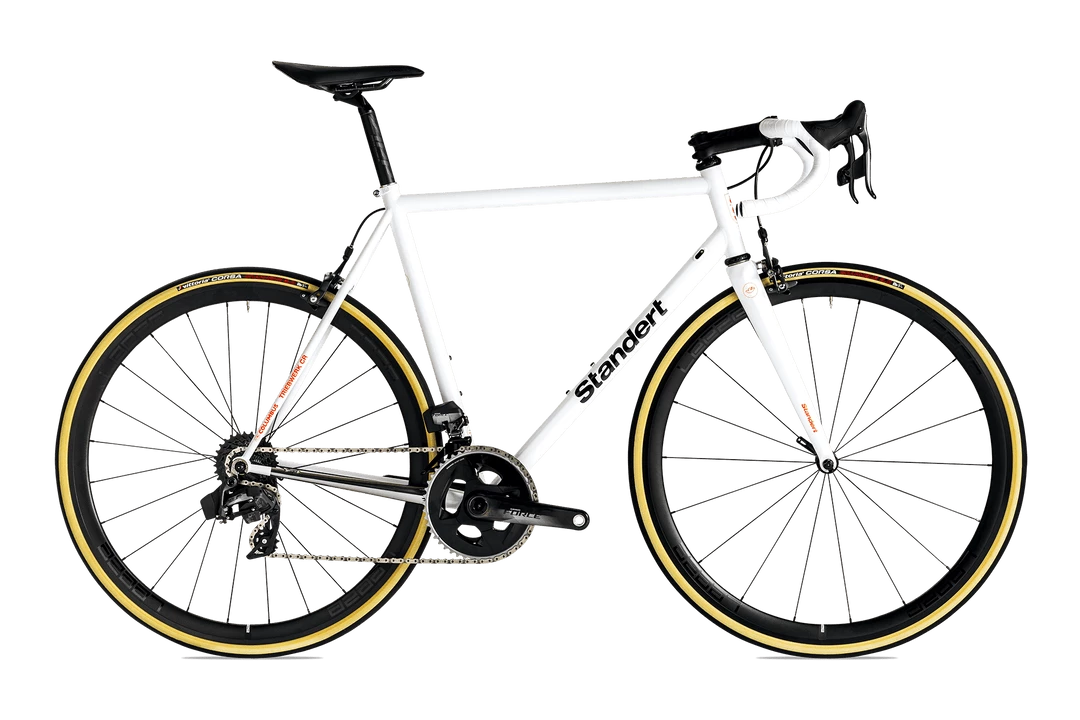

The all new Triebwerk CR is here to be your timeless companion on this journey. A classic road bike that gives you the feeling of riding a piece of cycling heritage while being an uncompromised modern steel road bike. We didn’t test it in a wind tunnel because the views in there suck. Instead we had a lovely trip to France and rode it up the Mont Ventoux. The Triebwerk CR is made to create memories and take you places instead of KOMs and races.

Made from a mix of Columbus Spirit, Spirit HSS and XCr tubes combined with a maximum of 28c tire clearance the Triebwerk CR gives you all the compliance you could ask for to fully enjoy your ride. Furthermore we found out that rim brakes still work. And they are also so easy to maintain. The 1 ⅛” headtube with the Chris King headset and the Columbus Futura Caliper SL carbon fork give the Triebwerk CR that slick classic road bike look. When it comes to the bottom bracket we opted for T47 as usual. In the end we created a modern steel road bike that is very light, agile and durable but still looks like an absolute classic.

$SECTION_IMAGE







$SECTION_DISCOVER
97;42;triebwerk-cr-salt-front-diagonal
89;28;triebwerk-cr-salt-front
84;25;triebwerk-cr-salt-handlebars
75;31;triebwerk-cr-salt-handlebars-side
28;33;triebwerk-cr-salt-brake
46;80;triebwerk-cr-salt-crankset
76;44;triebwerk-cr-salt-tire
48;57;triebwerk-cr-salt-details
19;57;triebwerk-cr-salt-hub-rear
32;68;triebwerk-cr-salt-groupset
26;16;triebwerk-cr-salt-saddle
5;42;triebwerk-cr-salt-back-diagonal
35;38;triebwerk-cr-salt-lucky-cat

$SECTION_QUOTE



$SECTION_SPECS

Stem;stem;Zipp Service Course Silver/ SL Beyond Black 6°
Handlebar;handlebar; Zipp Service Course 80 Silver/ SL-70 Ergo Beyond Black
Handlebar Tape / Grips;handlebar-tape-grips;Fizik Vento Microtex, 2mm
Shift / Brake Levers;shift-brake-levers;Sram Force eTap AXS
Brake Front;brake-front;Sram Force AXS Dual Pivot
Brake Rear;brake-rear;Sram Force AXS Dual Pivot
Derailleur Front;derailleur-front;Sram Force eTap AXS
Derailleur Rear;derailleur-rear;Sram Force eTap AXS
Cassette;cassette;Sram Force XG-1270 10-28
Chain;chain;Sram Force Flattop 12-Speed
Crankset;crankset;Sram Force DUB 4633
Saddle;saddle;Fizik
Seatpost;seatpost; Zipp Service Course Silver/ SL Beyond Black
Frame;frame;Standert Triebwerk CR

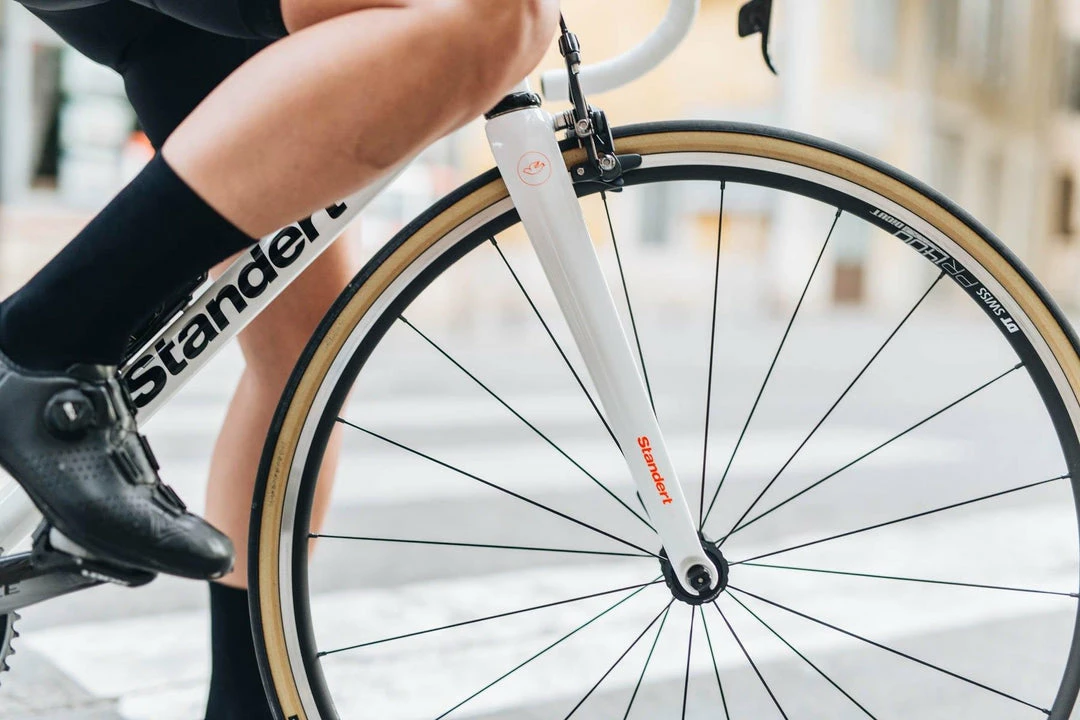

Fork;fork;Columbus Futura Caliper SL 1 1/8″
Colors;colors;Salt, Pepper
Sizes;sizes;52, 54, 56, 58, 60Weight;weight-kg; Complete (Size 56) 8,3kg
Max. Tire Clearance;max.-tire-clearance;700x28c
; ;
Headset;headset;Chris King NoThreadSet 1 1/8″
Bottom Bracket;bottom-bracket;First T47 DUB
; ;
Wheelset;wheelset;Leeze

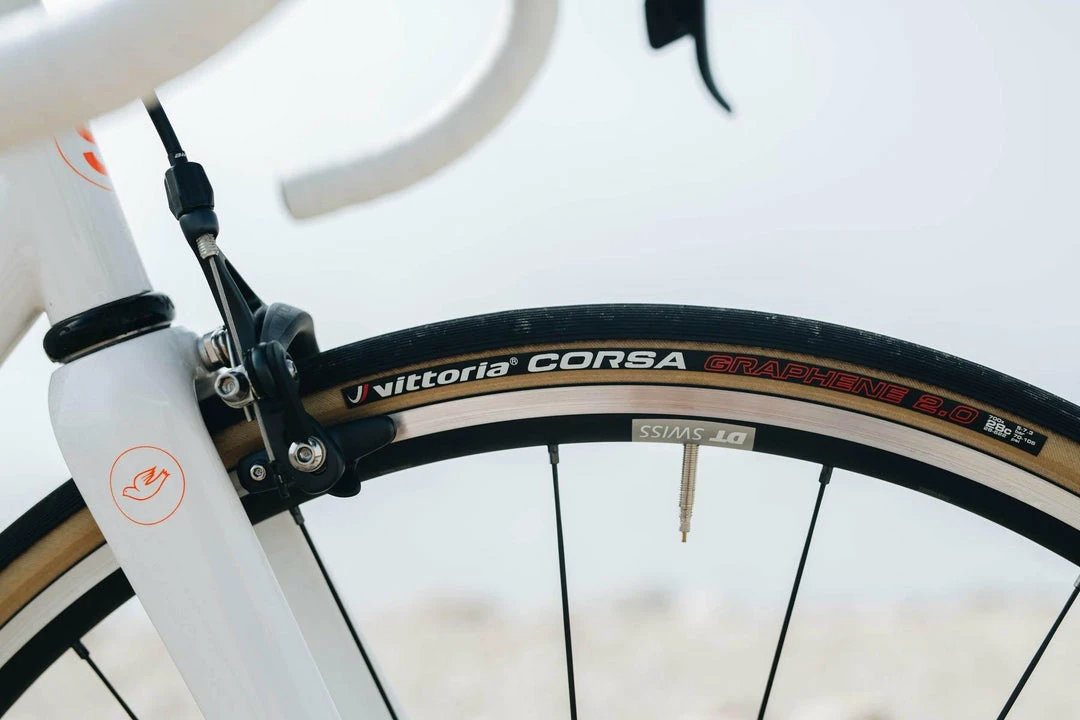

Tires;tires;Vittoria Corsa 28c


$SECTION_GEOMETRY 52;54;56;58;60
a;Seat Tube Length;535;555;570;585;600
b;Top Tube Length;525;542;560;570;582
c;Head Tube Length;127;143;157;173;188
d;Seat Tube Angle;75;74.5;74;74;74
e;Head Tube Angle;72;73;73.2;73.2;73.2
f;Stack;534;553;567;582;597
g;Reach;380;388;397;404;410
h;Chainstay Length;410;412;412;412;412
i;Wheelbase;987;989;1001;1013;1023
j;Standover Height;777;801;815;829;844
k;Crankset;170;170;172.5;172.5;172.5
l;Stem;110;110;120;120;120
m;Handlebar Width;38;40;42;42;42
n;Setback;0;0;20;20;20

$SECTION_SIZING Body Height;cm;Inseam;cm;Frame Size
160;170;80;84;52
170;180;82;86;54
175;185;83;87;56
185;195;85;89;58
190;200;87;91;60
regular fit;race fit;regular fit;race fit
