The roads we ride. The mountains we climb. The crashes. The monuments. The punctures. The coffee stops. The weather… It all adds up to the ever evolving story of our cycling lives.

The all new Triebwerk CR is here to be your timeless companion on this journey. A classic road bike that gives you the feeling of riding a piece of cycling heritage while being an uncompromised modern steel road bike. We didn’t test it in a wind tunnel because the views in there suck. Instead we had a lovely trip to France and rode it up the Mont Ventoux. The Triebwerk CR is made to create memories and take you places instead of KOMs and races.

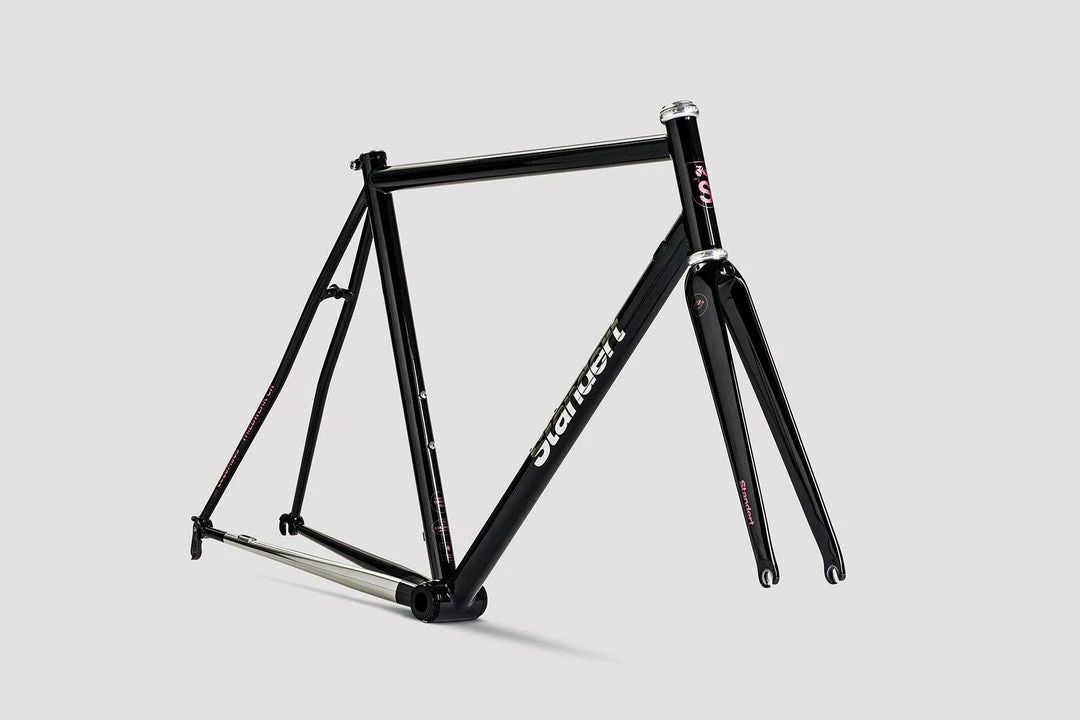

Made from a mix of Columbus Spirit, Spirit HSS and XCr tubes combined with a maximum of 28c tire clearance the Triebwerk CR gives you all the compliance you could ask for to fully enjoy your ride. Furthermore we found out that rim brakes still work. And they are also so easy to maintain. The 1 ⅛” headtube with the Chris King headset and the Columbus Futura Caliper SL carbon fork give the Triebwerk CR that slick classic road bike look. When it comes to the bottom bracket we opted for T47 as usual. In the end we created a modern steel road bike that is very light, agile and durable but still looks like an absolute classic.



$SECTION_IMAGE

$SECTION_DISCOVER
43;70;triebwerk-cr-frameset-black-details
10;64;triebwerk-cr-frameset-black-dropouts
50;39;triebwerk-cr-frameset-black-side-profile
13;50;triebwerk-cr-frameset-black-back
75;32;triebwerk-cr-frameset-black-cabling
53;35;triebwerk-cr-frameset-black-reverse-cabling
57;35;triebwerk-cr-frameset-black-frame-crop
80;50;triebwerk-cr-frameset-black-front
72;20;triebwerk-cr-frameset-black-badge
22;35;triebwerk-cr-frameset-black-lucky-cat
40;28;triebwerk-cr-frameset-black-seat-stem
49;84;triebwerk-cr-frameset-black-bb
52;77;triebwerk-cr-frameset-black-bb-detail

$SECTION_QUOTE



$SECTION_SPECS

Frameset; ;Included in the frameset:
Frame;frame;Standert Triebwerk CR
Fork;fork;Columbus Futura Caliper SL 1 1/8″
Headset;headset;Chris King NoThreadSet 1 1/8″
Bottom Bracket;bottom-bracket;First T47
Seatpost Clamp;seatpost-clamp;Seat Bolt Binder 22mm
 ; ;



Dimensions; ;Additional dimensions are:
Seatpost Diameter;seatpost;27.2mm
Front Derailleur Clamp Diameter;front-derailleur-clamp-diameter;31.8mm
Max. Tire Clearance;max.-tire-clearance;700x28c
Ready for;ready-for;1x, 2x, Di2, eTap, EPS
 ; ;

Colors;colors;Salt, Pepper
Sizes;sizes;52, 54, 56, 58, 60
Weight;weight-kg;Frame (size 56) 1815g, Fork 375g





$SECTION_GEOMETRY 52;54;56;58;60
a;Seat Tube Length;535;555;570;585;600
b;Top Tube Length;525;542;560;570;582
c;Head Tube Length;127;143;157;173;188
d;Seat Tube Angle;75;74.5;74;74;74
e;Head Tube Angle;72;73;73.2;73.2;73.2
f;Stack;534;553;567;582;597
g;Reach;380;388;397;404;410
h;Chainstay Length;410;412;412;412;412
i;Wheelbase;987;989;1001;1013;1023
j;Standover Height;777;801;815;829;844

$SECTION_SIZING Body Height;cm;Inseam;cm;Frame Size
160;170;80;84;52
170;180;82;86;54
175;185;83;87;56
185;195;85;89;58
190;200;87;91;60
regular fit;race fit;regular fit;race fit
