Standertshop Triebwerk DISC | Complete Bike | LTD Edition IV Bikes

Real road cycling.

The Triebwerk Disc is back.

But what’s real?

Emotions are real. Endorphins are real. Views are real. Sweat is real. Climbs are real. Descents are real. Wind is real. Bonking is real. Getting dropped is real. Improving is real. Dropping others is real. Coffee rides are real. Outside is real.

The new Triebwerk Disc is real. The third generation of our steel road bike with disc brakes continues what the first and second generations started. Bringing the best of both worlds to you. Modern technology and classy aesthetics. Our selected Columbus steel tubing is light and durable and offers the best performance while not cutting on the superior ride feel.

Our new Triebwerk Disc is the bike that makes you plan your next ride the moment you come home from a ride.

Shop Triebwerk DISC LTD online or visit us in Berlin.

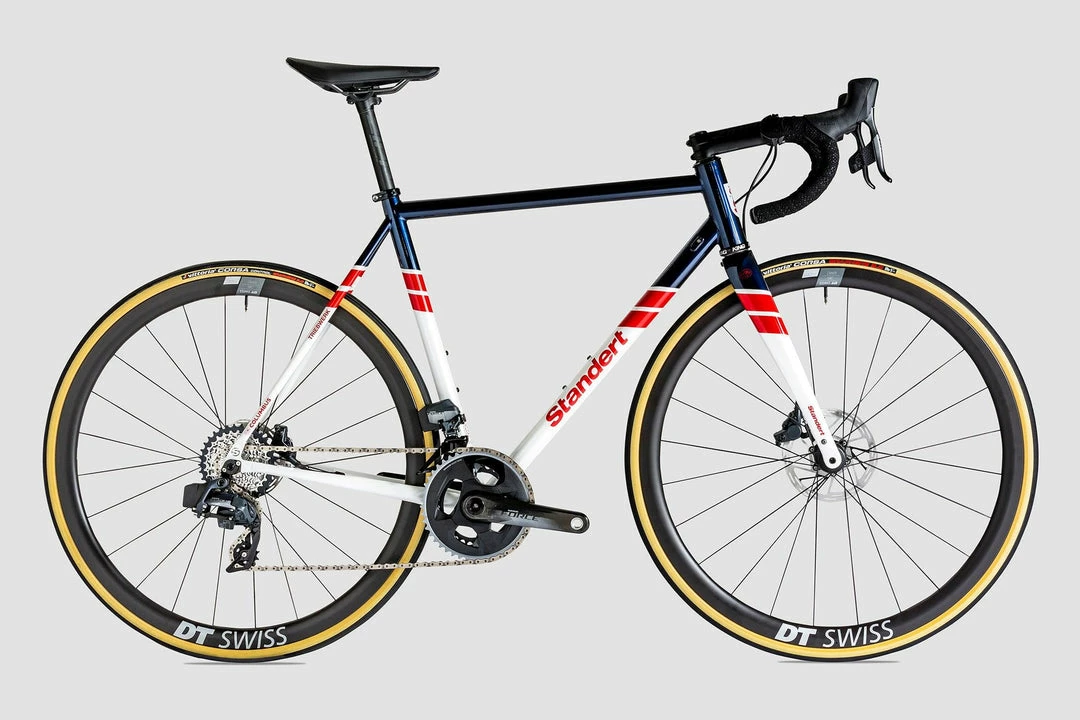

*Image shows size 54

$SECTION_IMAGE

$SECTION_DISCOVER
98;42;triebwerk-disc-complete-limited-edition-IV-front-diagonal
3;42;triebwerk-disc-complete-limited-edition-IV-back-diagonal
85;18;triebwerk-disc-complete-limited-edition-IV-handlebars
84;25;triebwerk-disc-complete-limited-edition-IV-handlebars-side
57;35;triebwerk-disc-complete-limited-edition-IV-frame-crop
46;80;triebwerk-disc-complete-limited-edition-IV-crankset
35;80;triebwerk-disc-complete-limited-edition-IV-groupset
30;30;triebwerk-disc-complete-limited-edition-IV-lucky-cat
46;57;triebwerk-disc-complete-limited-edition-IV-decals
19;53;triebwerk-disc-complete-limited-edition-IV-hub-rear
80;53;triebwerk-disc-complete-limited-edition-IV-hub-front
70;25;triebwerk-disc-complete-limited-edition-IV-badge
76;44;triebwerk-disc-complete-limited-edition-IV-tire
26;16;triebwerk-disc-complete-limited-edition-IV-saddle
64;37;triebwerk-disc-complete-limited-edition-IV-reverse-cabling
61;37;triebwerk-disc-complete-limited-edition-IV-cabling

$SECTION_QUOTE



$SECTION_SPECS

Stem;stem;Zipp Service Course SL Beyond Black 6°
Handlebar;handlebar; Zipp Service Course SL-70 Ergo Beyond Black
Handlebar Tape / Grips;handlebar-tape-grips;Fizik Tempo Microtex Bondcush
Shift / Brake Levers;shift-brake-levers;Sram Force eTap AXS HRD
Brake Front;brake-front;Sram Force eTap HRD flat mount, Paceline rotor 160mm
Brake Rear;brake-rear;Sram Force eTap HRD flat mount, Paceline rotor 140mm
Derailleur Front;derailleur-front;Sram Force eTap AXS
Derailleur Rear;derailleur-rear;Sram Force eTap AXS
Cassette;cassette;Sram Force XG-1270 10-33
Chain;chain;Sram Force Flattop 12-Speed
Crankset;crankset;Sram Force DUB 4633
Saddle;saddle;Fizik Tempo R3
Seatpost;seatpost; Zipp Service Course SL Carbon

Frame;frame;Standert Triebwerk Disc
Fork;fork;Columbus Futura Disc 1 1/4″
Colors;colors;Ltd Edition IV, All Green
Sizes;sizes;48 Project Compact™, 50 Project Compact™, 52 Project Compact™, 54, 56, 58, 60
Weight;weight-kg; Complete (Size 54) 8,8kg
Max. Tire Clearance;max.-tire-clearance;700x32c
; ;
Headset;headset;Chris King Inset 8
Bottom Bracket;bottom-bracket;First T47 DUB
; ;
Wheelset;wheelset;DT Swiss ERC 1400 Carbon
Tires;tires;Vittoria Corsa 28c


$SECTION_GEOMETRY 48 PC™;50 PC™;52 PC™;54;56;58;60
a;Seat Tube Length;480;490;515;540;555;570;575
b;Top Tube Length;498;509;526;542;559;570;582
c;Head Tube Length;111;119;127;142;156;172;188
d;Seat Tube Angle;76.5;76;75;74.5;74;74;74
e;Head Tube Angle;71.25;72;72.5;73;73.25;73.25;73.25
f;Stack;520;530;540;555;570;585;600
g;Reach;370;375;380;387;395;402;410
h;Chainstay Length;410;410;410;410;410;410;410
i;Wheelbase;974;976;979;986;996;1008;1021
j;Standover Height;744;753;770;784;803;818;833
k;Crankset;165;170;170;170;172.5;172.5;172.5
l;Stem;100;100;110;110;120;120;120
m;Handlebar Width;38;38;40;40;42;42;42
n;Setback;0;0;0;0;20;20;20

$SECTION_SIZING Body Height;cm;Inseam;cm;Frame Size
150;163;76;82;48 PC™
158;170;77;83;50 PC™
166;177;78;84;52 PC™
170;180;80;86;54
175;185;82;88;56
182;192;84;90;58
188;198;85;91;60
regular fit;race fit;regular fit;race fit
