Standertshop Triebwerk DISC | Frameset | All Green Road

Standertshop Triebwerk DISC | Frameset | All Green Road

Original price was: $540.00.Current price is: $95.99.

SKU: frames-7557464359125 Categories: Bikes, Road, Triebwerk Disc Tags: Disc road bike frame, Frameset, Steel disc road bike frame, Steel road bike frame, Triebwerk disc

The quality you expect, the service you deserve.
Safe Transactions, Always
No-Questions-Asked Returns
Get the Best for Less

Real road cycling.

The Triebwerk Disc is back.

But what’s real?

Emotions are real. Endorphins are real. Views are real. Sweat is real. Climbs are real. Descents are real. Wind is real. Bonking is real. Getting dropped is real. Improving is real. Dropping others is real. Coffee rides are real. Outside is real.

The new Triebwerk Disc is real. The third generation of our steel road bike with disc brakes continues what the first and second generations started. Bringing the best of both worlds to you. Modern technology and classy aesthetics. Our selected Columbus steel tubing is light and durable and offers the best performance while not cutting on the superior ride feel.

Our new Triebwerk Disc is the bike that makes you plan your next ride the moment you come home from a ride.

Shop Triebwerk DISC All Green frameset online or visit us in Berlin.

FACT SHEET

“Standert’s steel Triebwerk Disc road bike gets a subtle new update that makes it both more modern & more classic at the same time. First, careful tweaks to the rear end make room for bigger tires without impacting chainstay length, while a slimmer tapered carbon fork transitions more smoothly with traditional steel tubing style.”

“With build kit options, a flashy limited-edition package and a plethora of sizes currently available, it’s a beautiful option for those looking for a new road machine this spring.”

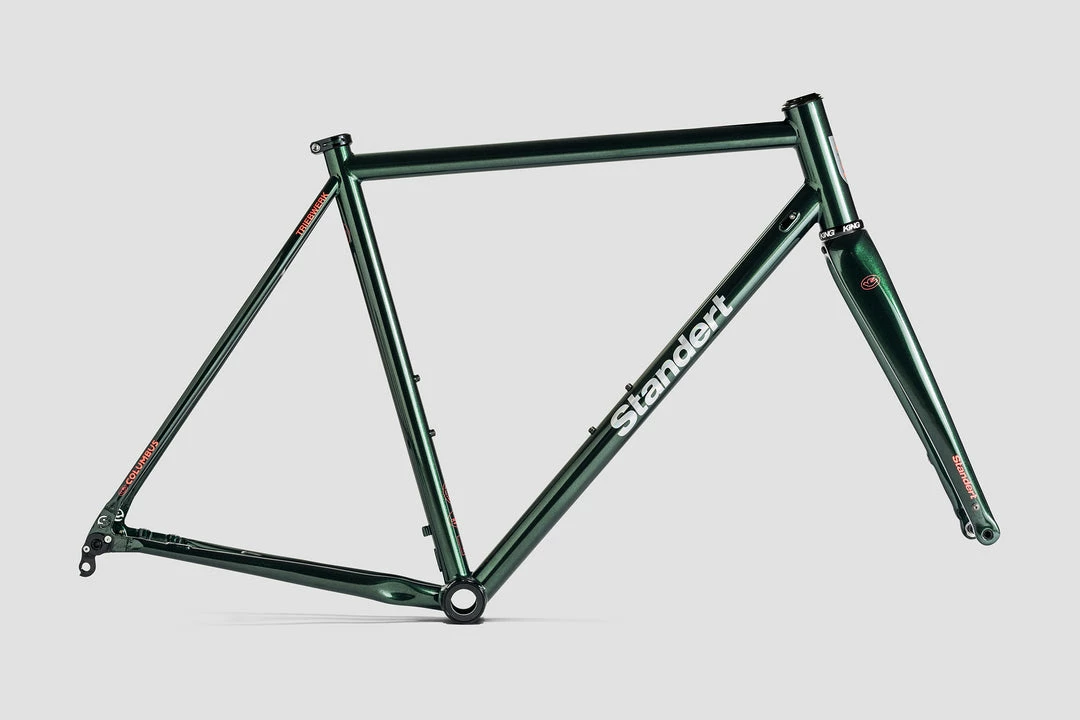

*Image shows size 54

$SECTION_IMAGE

$SECTION_DISCOVER
46;68;triebwerk-disc-frameset-all-green-details
15;64;triebwerk-disc-frameset-all-green-dropouts
50;39;triebwerk-disc-frameset-all-green-side-profile
18;50;triebwerk-disc-frameset-all-green–back
58;34;triebwerk-disc-frameset-all-green-cabling
58;38;triebwerk-disc-frameset-all-green-reverse-cabling
81;50;triebwerk-disc-frameset-all-green-front
71;20;triebwerk-disc-frameset-all-green-badge
26;35;triebwerk-disc-frameset-all-green–lucky-cat
42;25;triebwerk-disc-frameset-all-green-seat-stem
52;84;triebwerk-disc-frameset-all-green-bb

$SECTION_QUOTE

$SECTION_SPECS

Frameset; ;Included in the frameset:
Frame;frame;Standert Triebwerk Disc
Fork;fork;Columbus Futura Disc 1 1/8″ – 1/4″
Headset;headset;Chris King Inset 8
Bottom Bracket;bottom-bracket;First T47
Seatpost Clamp;seatpost-clamp;31.8mm
Through Axles;through-axles;front 12×100, rear 12×142 (Included)
; ;



Dimensions; ;Additional dimensions are:
Seatpost Diameter;seatpost;27.2mm
Front Derailleur Clamp Diameter;front-derailleur-clamp-diameter;31.8mm
Max. Tire Clearance;max.-tire-clearance;700x32c
Ready for;ready-for;1x, 2x, Di2, eTap, EPS
; ;

Colors;colors;Ltd Edition IV, All Green
Sizes;sizes;48 Project Compact™, 50 Project Compact™, 52 Project Compact™, 54, 56, 58, 60
Weight;weight-kg;Frame (size 56) 1830g, Fork (uncut) 440g

$SECTION_GEOMETRY 48 PC™;50 PC™;52 PC™;54;56;58;60
a;Seat Tube Length;480;490;515;540;555;570;575
b;Top Tube Length;498;509;526;542;559;570;582
c;Head Tube Length;111;119;127;142;156;172;188
d;Seat Tube Angle;76.5;76;75;74.5;74;74;74
e;Head Tube Angle;71.25;72;72.5;73;73.25;73.25;73.25
f;Stack;520;530;540;555;570;585;600
g;Reach;370;375;380;387;395;402;410
h;Chainstay Length;410;410;410;410;410;410;410
i;Wheelbase;974;976;979;986;996;1008;1021
;Standover Height;744;753;770;784;803;818;833

$SECTION_SIZING Body Height;cm;Inseam;cm;Frame Size
150;163;76;82;48 PC™
158;170;77;83;50 PC™
166;177;78;84;52 PC™
170;180;80;86;54
175;185;82;88;56
182;192;84;90;58
188;198;85;91;60
regular fit;race fit;regular fit;race fit
